 | | Miniature micro switch
| | Knobs, levers & terminals options
| | Gold-plated contact is recommended when it is operated in:
| | (a) low power application, i.e. =<24V or =< 0.2A ;
| | (b) rare actuation application;
| | (c) corrosive environment
| | UL 61058-1 approved
| | BFR / Halogen Free |
|
|

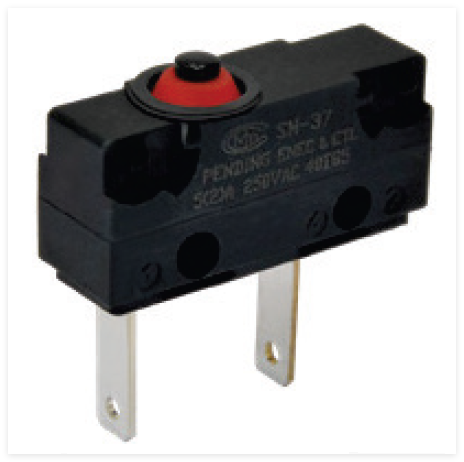

 | | Miniature micro switch
| | IP55 waterproof protection for housing type no. W1 (KEMA, ENEC approved)
| | IP67 waterproof protection for housing type no. W2 (KEMA, ENEC approved)
| | Operating force options
| | Terminals and pre-wired options
| | Gold-plated contact is recommended when it is operated in:
| | (a) low power application, i.e. =<24V or =< 0.2A ;
| | (b) rare actuation application;
| | (c) corrosive environment |
|
|
 | | Levers & knobs options
| | Gold-plated contact is recommended when it is operated in
| | (a) low power application, i.e. =<24V or =< 0.2A ;
| | (b) rare actuation application;
| | (c) corrosive environment
| | UL 61058-1 approved
| | 3mm gap version on request |
|
|
 | | Light force version
| | Levers & knobs options
| | Gold-plated contact is recommended when it is operated in
| | (a) low power application, i.e. =<24V or =< 0.2A ;
| | (b) rare actuation application;
| | (c) corrosive environment
| | UL 61058-1 approved
| | 3/4 HP 120/250VAC on request |
|
|
 | | Levers & knobs options
| | Operating force options
| | Gold-plated contact is recommended when it is operated in
| | (a) low power application, i.e. =<24V or =< 0.2A ;
| | (b) rare actuation application;
| | (c) corrosive environment
| | UL 61058-1 approved
| | 100,000 electrical cycles |
|
|
 | | Features and Usage:
| | - Degree of protection:IP65&IP67
| | - Many different switch characteristics, actuators and terminations resulting in thousands of potential configurations
| | - Choice of actuator on 3 possible fixing positions
| | - Can be used in environment resistant places and application, outdoor apparatus such as automobile, vending machine, refrigerator, ice machine, bath equipment,water heater and air-conditioner etc.
| | Specifications:（Electrical）
| | Temperature Rating:-40°C to 125°C
| | Flammability Rating:UL94V-0
|
|
|
 | | Features:
| | -Small dimensions
| | -Contact rating is suitable for low switched currents and voltages for light-current applications withloads of up to 3amps 125Vac
| | -Available with or without auxiliary actuator
| | -Can be fitted to circuit boards in upright position or horizontally with terminals on left or right
| | Specifications:
| | - Electrical
| | - Temperature Rating:-40℃ to 105℃
| | - Flammability Rating:UL94V-2 |
|
|
 | | Features and Usage:
| | -Be suitable for low&high temperature
| | -Degree of protection-IP65,IP67
| | -Two options for lever position
| | -Using in dusty,humidity and wide temperature range.
| | -Most suitable for vehicle,air-conditioner control and other electrical device
| | Specifications
| | Electrical
| | Temperature Rating:-40℃ to 85℃
| | Flammability Rating:UL94V-0 |
|
|
 | | Features and Usage:
| | -High current and high temperature
| | -Long life,high reliability,multiple temperature grade
| | -Multiple levers and terminals for choice
| | -Suitable for industrial equipment and electrical appliances
| | Specifications:
| | Electrical
| | Temperature Rating:-40℃ to 125℃ and -40 to 150℃(Bakelite Version)
| | Flammability Rating:UL94V-0 |
|
